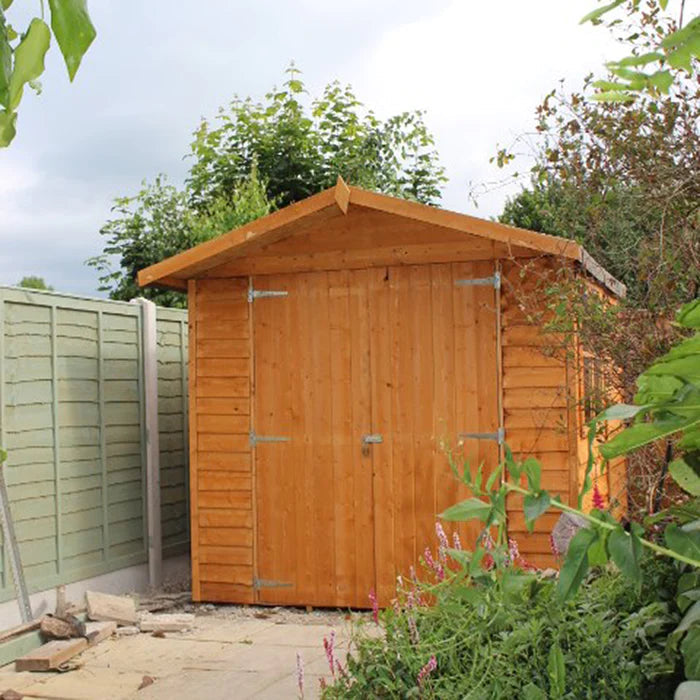

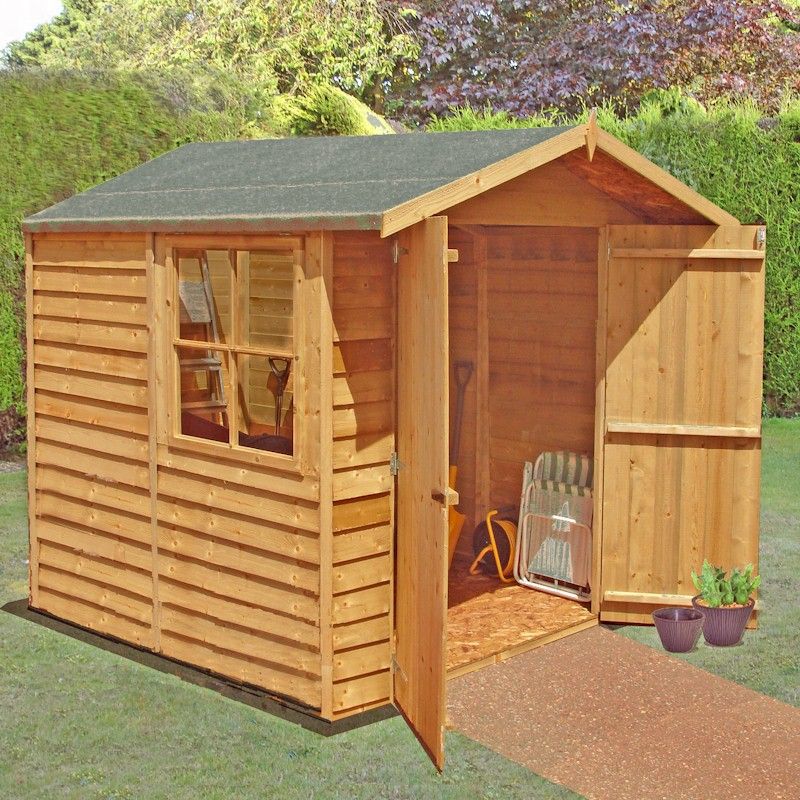

The Shire Overlap Garden Shed 7x7 with Double Doors is part of a range of apex roof sheds made from kiln-dried timber, making them much more resistant to warping. They feature 34x34mm thickness framing that is usually reserved for more expensive tongue and groove buildings. Each of these Overlap sheds have a higher eaves height when compared to the equivalent size, regular overlap buildings allowing more headroom inside the shed. This 7x7 shed also features a quality joinery opening window that can be placed on either side of the building, to best suit the position of the shed in your garden. The glazing is single pane horticultural glass. The roof and floor are formed from a solid sheet boarding, again on a 34x34mm framing. The wall panels are constructed of overlap cladding and supplied in modular sections. The main advantage of a modular design is that each individual panel will be small enough (in one or both dimensions) to be carried by one person and will fit through a standard pedestrian door. As a concequence the individual boards may not line up perfectly with those on adjacent panels, due to the variences in the natural timber cladding. Access is provided by a handy wide double door, complete with a hasp and staple (customer to supply padlock).
Features:
- Enhanced-quality Overlap shed, traditional yet practical
- Improved, kiln-dried overlap cladding to deter warping
- Heavier 34x34mm framing, usually found on superior shiplap sheds
- Higher eaves than typical overlap sheds
- Interchangeable opening side window you can reposition for maximum light
- Handy double doors for easy access
Detailed Measurements
| External Width (max) |
2201mm Β - Β 7' 3" |
| External Depth (max) |
2334mm Β - Β 7' 8" |
| External Height (max) |
2112mm Β - Β 6' 11" |
| Footprint Width |
2048mm Β - Β 6' 9" |
| Footprint Depth |
1980mm Β - Β 6' 6" |
| Internal Width (min) |
1980mm Β - Β 6' 6" |
| Internal Depth (min) |
1912mm Β - Β 6' 3" |
| Internal Height (min) |
2002mm Β - Β 6' 7" |
| Ridge Height |
2112mm Β - Β 6' 11" |
| Eaves Height |
1749mm Β - Β 5' 9" |
| Door Height |
1712mm Β - Β 5' 7" |
| Door Width |
1348mm Β - Β 4' 5" |
| Framing Width |
34mm Β - Β 0' 1" |
| Framing Depth |
34mm Β - Β 0' 1" |
Note: All imperial sizes stated are approximate, rounded to the nearest inch.
Characteristics
| Material |
Wood |
| Cladding |
Overlap |
| Finish |
Sawn |
| Colour |
Brown |
| Treatment |
Dip-treated |
| Door Position |
In gable end |
| Orientation |
2.201m Gables / 2.334m sides (max) |
| Door Type |
Hinged double |
| Door Catch |
Hasp & staple |
| Roof Type |
Apex |
| Roof Covering |
Sand felt |
| Roof Material |
8mm Solid sheet board |
| Wall Material |
7mm Overlap |
| Cladding Material |
Overlap |
| Floor Material |
11mm Solid sheet board |
| Floor Joist Direction |
Side to side |
| Opening Windows |
1 |
| Window Dimensions |
806x806mm |
| Glazing Material |
Single glazed glass |
| FSC Certified |
Yes |
| Made in Britain |
Yes |
Assembly & Care
| Installation |
Self-assembly by customer |
| Persons to Assemble |
2 |
| Typical Assembly Time |
1 to 2 Hours |
| Base Size Required |
1197mm x 914mm (min) |
| Fits Through Door (78x30 inch) |
Yes |
| Annual Treatment |
Yes by customer |
Useful To Know
| Warranty |
12 Months parts |
| Recommended Use |
Garden storage |
| Includes |
A floor, felt, full instructions and fixings |
| Excludes |
Assembly |
