**This product is made to order
**Please note some postcode/delivery zones exclusions are in place by Shire - Pls check the image library for these exclusions before placing your order.

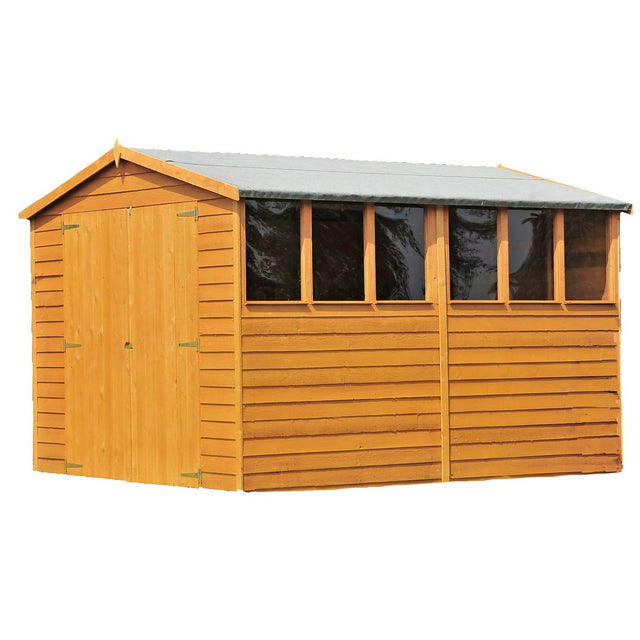

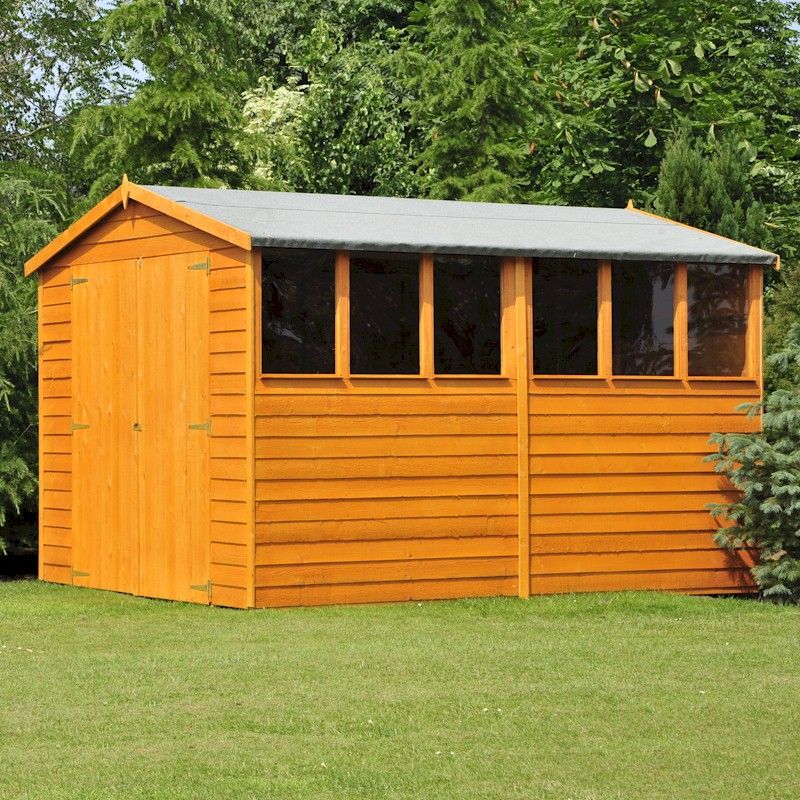

The Shire Overlap Garden Shed 10x10 with Double Doors is part of a range sheds made from kiln-dried timber, making them much more resistant to warping.
They feature 34x34mm thickness framing that is usually reserved for more expensive tongue and groove buildings.
Each of the Overlap sheds have a higher eaves height when compared to the equivalent size, regular overlap buildings allowing more headroom inside the shed.
This 12x8 shed also features windowed side panels that can be placed on either side of the building to best suit the position of the shed in your garden. The glazing is safety styrene to the fixed windows.
The roof and floor are formed from a solid sheet boarding, again on a 34x34mm framing.
The wall panels are constructed of overlap cladding and supplied in modular sections. The main advantage of a modular design is that each individual panel will be small enough (in one or both dimensions) to be carried by one person and will fit through a standard pedestrian door. As a concequence the individual boards may not line up perfectly with those on adjacent panels, due to the variences in the natural timber cladding.
Access is provided by a handy wide double door, complete with a hasp and staple (customer to supply padlock).
External Width (max) | 3143mm - 10' 4" |
External Depth (max) | 3158mm - 10' 4" |
External Height (max) | 2172mm - 7' 2" |
Footprint Width | 2990mm - 9' 10" |
Footprint Depth | 2990mm - 9' 10" |
Internal Width (min) | 2920mm - 9' 7" |
Internal Depth (min) | 2920mm - 9' 7" |
Internal Height (min) | 1650mm - 5' 5" |
Ridge Height | 2172mm - 7' 2" |
Eaves Height | 1742mm - 5' 9" |
Door Height | 1640mm - 5' 5" |
Door Width | 1550mm - 5' 1" |
Door Opening Height | 1640mm - 5' 5" |
Door Opening Width | 1550mm - 5' 1" |
Framing Width | 34mm - 0' 1" |
Framing Depth | 34mm - 0' 1" |
Note: All imperial sizes stated are approximate, rounded to the nearest inch.
Material | Wood |
Cladding | Overlap |
Finish | Sawn |
Colour | Brown |
Treatment | Dip-treated |
Door Position | In gable end |
Orientation | 1.900m Gables / 3.610m sides (max) |
Door Type | Hinged double |
Door Catch | Hasp & staple |
Roof Type | Apex |
Roof Covering | Sand felt |
Roof Material | 8mm Solid sheet board |
Wall Material | 7mm Overlap |
Cladding Material | Overlap |
Floor Material | 11mm Solid sheet board |
Floor Joist Direction | Side to side |
Fixed Windows | 6 |
Window Dimensions | 460x613mm |
Glazing Material | Styrene |
FSC Certified | Yes |
Made in Britain | Yes |
Installation | Self-assembly by customer |
Persons to Assemble | 2 |
Typical Assembly Time | 1 to 2 Hours |
Base Size Required | 1197mm x 914mm (min) |
Fits Through Door (78x30 inch) | Yes |
Annual Treatment | Yes by customer |
Warranty | 12 Months parts |
Recommended Use | Garden storage |
Includes | A floor, felt, full instructions and fixings |
Excludes | Assembly |
